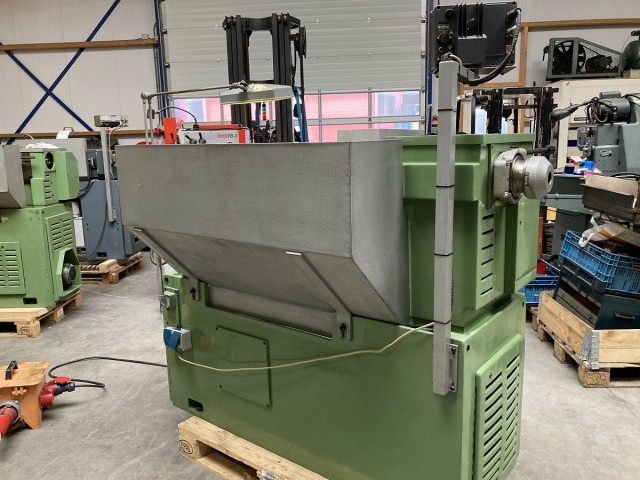

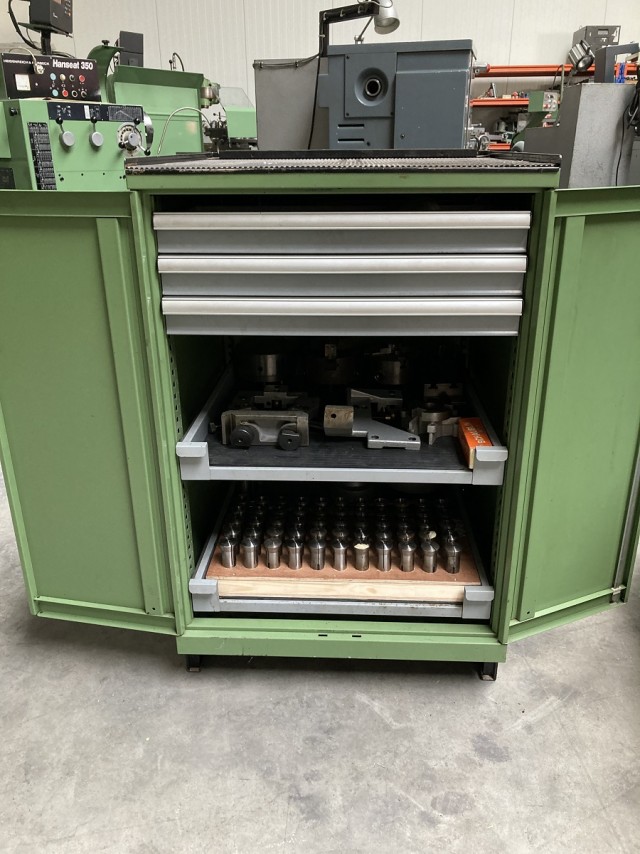

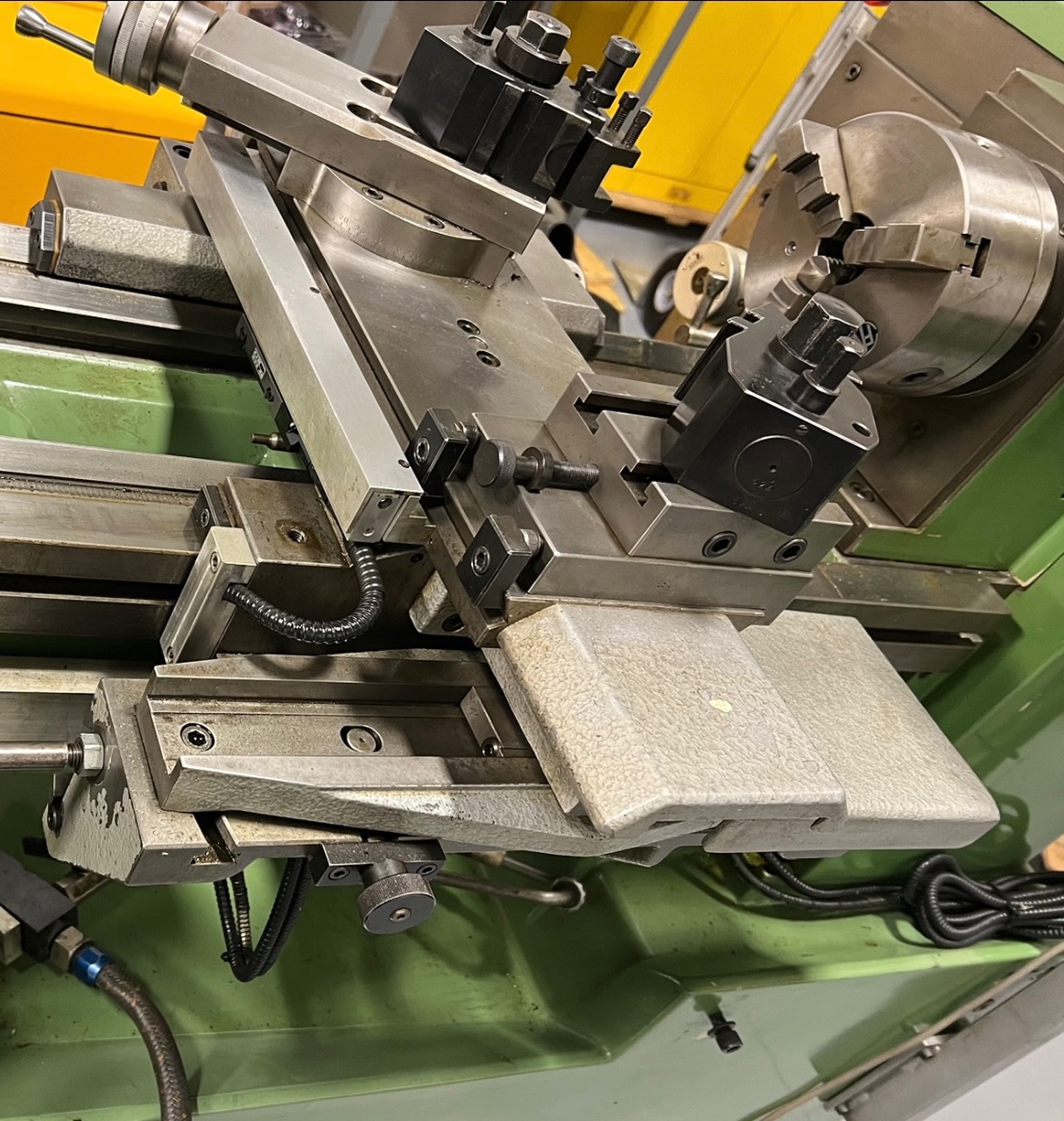

Schaublin 150 tool room lathe, made in Switzerland. Latest model Heidenhain DRO. Tooling as shown. (Lista cabinet included) Features include starwheel 2 speed tail stock, rear tool block, Tripan (Swiss) tool holder system, lever type collet closer and B32 collets, steady rest, follow rest, various chucks and taper attachment. Rapid traverse.

Condition is excellent. Runs quiet and smooth. Backlash of cross is .008 compound .005. Input voltage 380, 3 phase. (New 230v to 380v transformer available for $650 with lathe purchase)

Height of centres:

-Above bed: 150 mm

-Above tool slide: 33 mm

Max. distance between centres: 600 mm

Diameter admitted:

-Above bed: 340 mm

-Above carriage: 177 mm

-In spindle bore: 40 mm

-In B32 collet: 24 mm

-In stationary or travelling steady: 100 mm

Spindle nose: D 1-4" CAMLOCK

Spindle internal taper: No 5 MORSE

Spindle speeds, drive by variator: 55-3000 rpm

Spindle speeds with headstock reduction unit engaged: 55-750 rpm

Max. size of tools: 20x20 mm

Traverse on bed:

-Apron: 600 mm

Longitudinal stroke:

-Swivelling tool slide: 100 mm

-1 turn of the handwheel is equivalent to a traverse of: 2 mm

Transverse stroke:

-Carriage cross slide: 180 mm

-1 turn of the handwheel is equivalent to a traverse of: 3 mm

Accuracy of reading on handwheel verniers: 0,01 mm

24 longitudinal and transverse normal feeds: 0,025-0,35 mm/rev

24 longitudinal and transverse fine feeds: 0,015-0,21 mm/rev

36 screwcutting feeds for metric pitches: 0,25-14 mm

36 screwcutting feeds for English pitches: 112-1½ tpi

38 screwcutting feeds for module pitches: 0,125-7,5 modules

Longitudinal rapid automatic feed: 4,0 m/min

Spindle internal taper: No 3 MORSE

Longitudinal stroke of spindle: 120 mm

Transverse adjustment: ±10 mm

Main motor:

-2,0/750 kW-rpm

-4,0/3000 kW-rpm

Rapid-feed motor: 0,35/1500 kW-rpm

Coolant-system motor: 0,15-3000 kW-rpm

Lubrication-system motor: 0,15-3000 kW-rpm

Total electric power installed: 4,65 kW

Capacity of coolant tank: 29 litres

Weight 1250 kg
